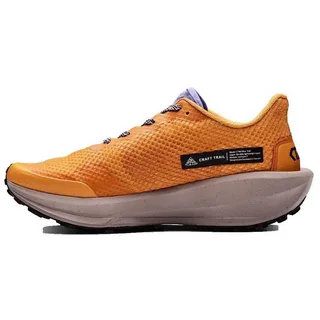

Trail ultra shoes. Stitch geometry that balances rock protection and forefoot flex

Long trails are tough on feet. Rocks bite. Roots grab. Miles add up. A good ultra shoe must protect. It must also bend in the right place. Stitch geometry is a big part of this balance. Where are the seams placed, length of the stitches, and type of thread and needle selected. All of that changes how the shoe feels at hour twelve. Here is a simple guide.

Map the foot and the forces

Start with a force map.

• Forefoot hinge. Just behind the toes. Needs smooth flex.
• Lateral wall. Holds the edge on off camber ground.
• Medial wall. Guides the big toe push on climbs.
• Toe bumper. Meets rocks and debris.
• Heel sling. Locks the rear on descents.

Mark these zones on the last. Plan seam paths so loads move toward the plate, rand, and heel cup, not across weak points.

Place seams away from the hinge

Keep seams off the main bend line.

• Move structural seams 5 to 8 mm behind the met heads.
• Do not cross the flex lane with random stitches.
• Round all corners with a 6 to 8 mm radius. Tight turns crowd holes and start cracks.
• Keep tall stacks out of the toe spring. Thick lumps rub and feel hard.

Stitch length, SPI, and pattern

Fewer holes mean a calmer flex.

• Set construction stitch length at 3.0 to 3.5 mm. That is about 7 to 8 SPI.
• For visible top lines that also carry load use 3.5 to 4.0 mm. About 6 to 7 SPI.
• Use double rail on stress lanes. Two slim rows 2 to 3 mm apart share load better than one dense line.
• Press shallow stitch channels so thread sits a little lower than the wear plane. Rocks touch fabric first, not thread.

Thread that protects and still bends

Pick strong but flexible thread.

• Corespun polyester sewing thread for most seams. Smooth. Low water take up. Good heat control.
• High tenacity polyester at toe bumper rails, lateral wall, and heel anchors. Lets you drop needle size while holding strength.
• Anti wick thread in splash seams and sidewall joins. Stops water from tracking along the holes in wet miles.
• Choose the finest passing ticket that meets seam strength. Smaller thread allows a smaller needle and smaller holes.
• Polyester embroidery thread for logo.

Needle types and sizes

Protect the upper and keep holes tidy.

• Micro or light round points for coated synthetics and microfiber.
• Ball point where knit collars or gusseted tongues meet.
• Start NM 80 to 90 for most stacks. Go bigger only where layers are heavy.
• Coated needles reduce friction heat. Heat can glaze films and weaken edges around holes.

Rock plate, rand, and stitch harmony

Protection comes from parts working together.

• Use a forefoot plate that stops sharp stone bites but leaves a flex notch at the met heads. Align your seam map with this notch so the shoe bends where the plate allows.
• Wrap the forefoot with a continuous rand. Place the joint under the arch. Keep a higher climb on the lateral wall for edge hold.
• Keep bond lanes 3 to 4 mm wide and clean. Press with even dwell. Cool clamp 2 to 3 seconds so memory sets and edges do not spring.

Upper panels that flex smart

• Use firm textile or film where rocks hit. Use softer mesh where heat builds.
• Add underlay tapes inside allowances to build gentle “roads” from toe bumper to arch and to heel. Width 3 to 4 mm. Same polymer family as the upper.
• Keep the gusseted tongue seam back from the forefoot hinge. Then the gusset does not fight flex.

Water, mud, and grit reality

Ultra trails get wet. Mud adds weight. Grit grinds seams.

• Raise sidewall stitches 2.5 to 3.0 mm above the feather line so holes are not in the worst splash zone.
• Use anti wick thread and seal critical seams with thin internal tape.
• Add small drain ports away from reinforcement lanes. Never punch holes along a load path.

Simple bench tests

1. Flex path check
   With a marker, draw the met head arc on the upper. Bend the shoe 100 times. If whitening shows on a seam over that arc, move the seam back and lengthen the stitch.
2. Rock bite panel test
   Press a rounded stone into the forefoot while the shoe is on a last. If you feel seam ribs through the sock, add a stitch channel or a narrow underlay tape to spread load.
3. Lateral roll on wedge
   Stand on a 15 degree tilted board. If the lateral wall feels soft, add a double rail and extend the underlay to the heel cup.
4. Wet soak and flex
   Soak for 30 minutes. Flex 5k cycles. If seams darken or water tracks, switch to anti wick thread and raise stitch height.

Troubleshooting quick table

Tech pack lines you can copy

• Stitch 301 construction 3.2 mm, top lines 3.8 mm, double rail 2.5 mm apart on stress lanes, pressed channels on scuff paths
• Thread corespun polyester for runs, high tenacity polyester at toe rail, lateral wall, and heel anchors, anti wick in splash seams
• Needles micro or light round NM 80 to 90, coated type
• Reinforcement same family tapes 3 to 4 mm linking toe bumper to arch and to heel cup
• Corners radius 7 mm minimum near met heads
• Bond lanes 3 to 4 mm, even dwell, cool clamp 2 to 3 seconds

One week pilot plan

Day 1 mark flex lane and stress paths on the pattern.
Day 2 build two uppers with two stitch lengths and lane widths.
Day 3 bond rands and set plates with flex notch aligned.
Day 4 run bench flex and rock bite tests.
Day 5 wet soak, flex 5k, and check for wicking and lift.
Day 6 field run on mixed trail for 10 km with off camber traverses.
Day 7 lock the recipe and train the line on seam placement and low tension rules.

Wrap

Ultra runners need both armor and flow. Good stitch geometry gives both. Keep seams off the hinge. Use longer stitches and small clean needles. Build gentle reinforcement roads that steer force into the rand and heel. Seal what must stay dry. Test in flex, on rocks, and when wet. Do this and your trail shoe will protect on stone while staying smooth at the forefoot all day.
